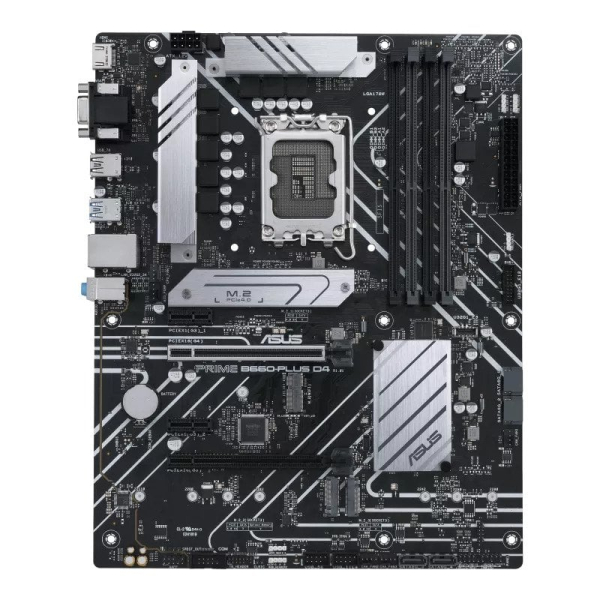

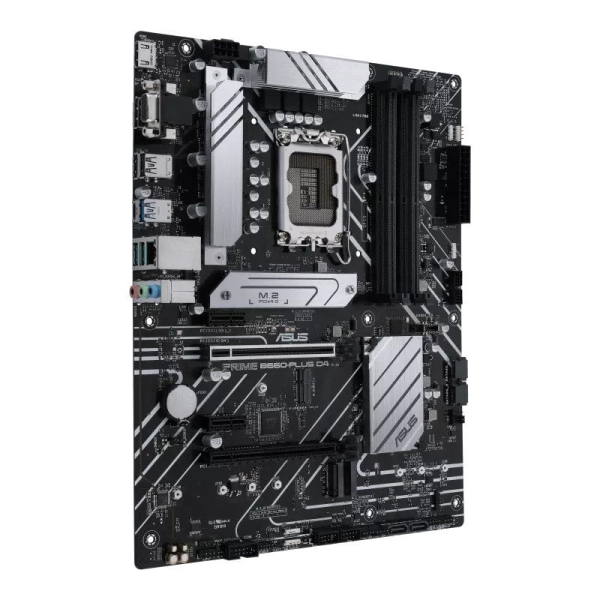

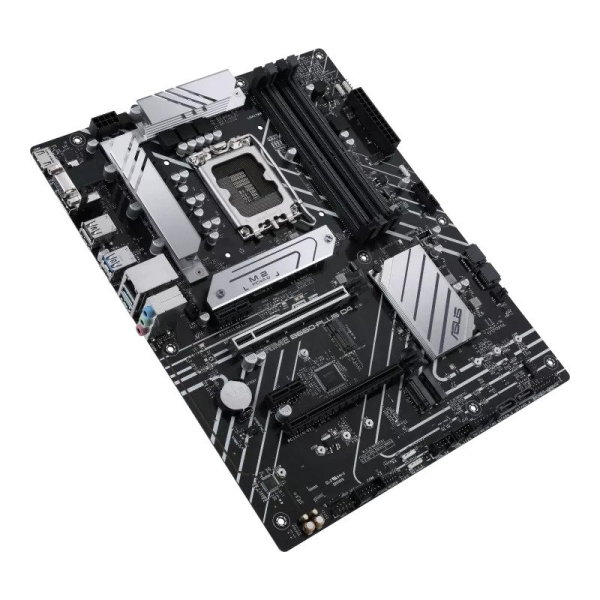

ASUS PRIME B660-PLUS D4

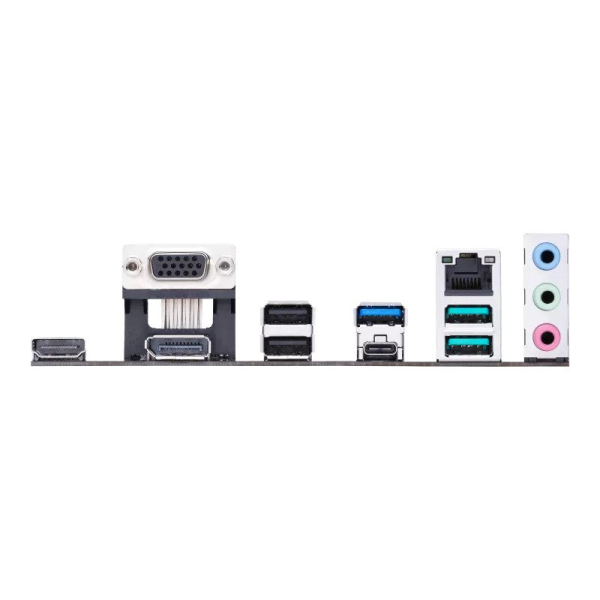

Chipset: Intel B660 Chipset Rozměrový formát: ATX (30.5cm x 24.4cm) Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA 1700 Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture Podpora pro paměti: DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Max.velikost operační paměti: 128 GB Podpora pro paměti typu: XMP, Non-ECC Grafické výstupy: (na základě procesoru) *1 x DisplayPort *1 x D-Sub port *1 x HDMI port Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC Síťová karta: 1 x Realtek 2.5Gb Ethernet port Rozšiřující sloty: *1 x PCIe 4.0 x16 slot *1 x PCIe 3.0 x16 slot (supports x4 mode) *2 x PCIe 3.0 x1 slots RAID řadič: RAID 0/1/5/10 SATA: 4 x SATA 6Gb/s ports M.2: 3 x M.2 slots (Key M) USB: *Interní: *1 x USB 3.2 Gen 1 connector (supports USB Type-C) *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *Externí: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *2 x USB 3.2 Gen 2 ports (2 x Type-A) *1 x USB 3.2 Gen 1 port (1 x Type-A) *2 x USB 2.0 ports (2 x Type-A) Interní porty: *Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin AIO Pump header *3 x 4-pin Chassis Fan headers *Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *Storage related *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports *USB *1 x USB 3.2 Gen 1 connector (supports USB Type-C) *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *Miscellaneous *3 x Addressable Gen 2 headers *2 x AURA RGB headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x M.2 slot (Key E) *1 x S/PDIF Out header *1 x SPI TPM header (14-1pin) *1 x 20-3 pin System Panel header with Chassis intrude function *1 x Thunderbolt header Externí porty: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *2 x USB 3.2 Gen 2 ports (2 x Type-A) *1 x USB 3.2 Gen 1 port (1 x Type-A) *2 x USB 2.0 ports (2 x Type-A) *1 x DisplayPort *1 x D-Sub port *1 x HDMI port *1 x Realtek 2.5Gb Ethernet port *3 x Audio jacks BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
