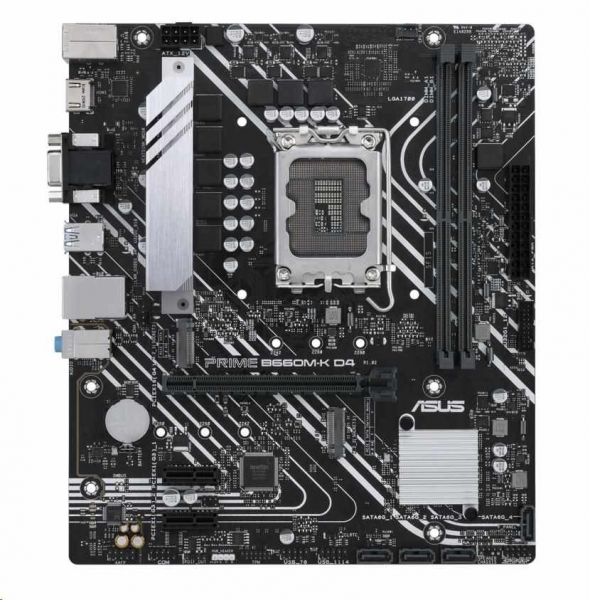

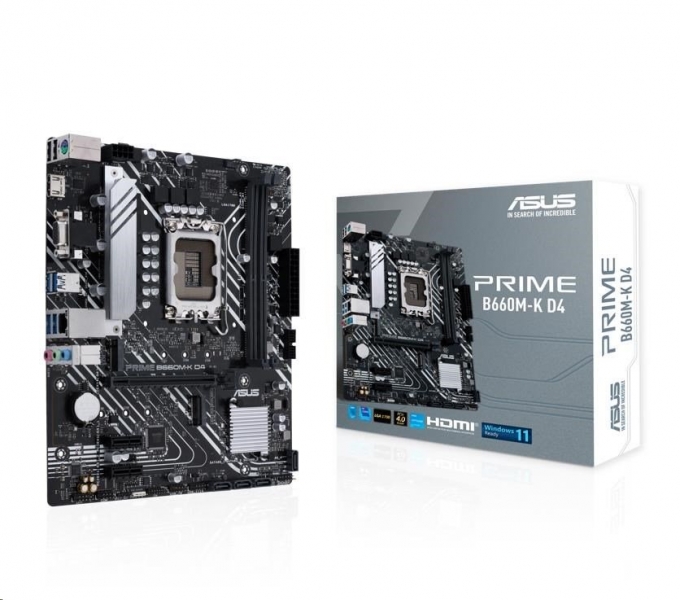

ASUS PRIME B660M-K D4

Rozměrový formát: microATX (24.4cm x 21.1cm) Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors Patice procesoru: LGA1700 Pozice na paměti: 2x DIMM, Dual Channel Memory Architecture Podpora pro paměti: DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Max.velikost operační paměti: 64 GB Podpora pro paměti typu: XMP Grafická karta: (na základě procesoru) 1 x D-Sub port 1 x HDMI port Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC Síťová karta: 1 x Realtek 1Gb Ethernet Rozšiřující sloty: 1 x PCIe 4.0/3.0 x16 slot 2 x PCIe 3.0 x1 slots RAID řadič: RAID 0/1/5/10 SATA: 4 x SATA 6Gb/s M.2: 2 x M.2 slots USB: Interní: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Externí: 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Interní porty: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Externí porty: 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
