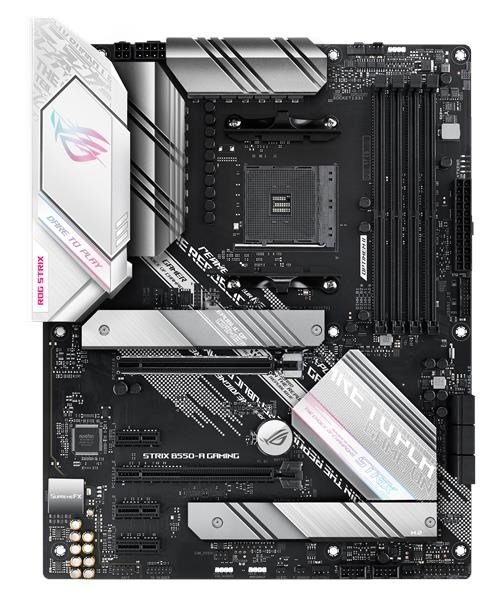

ASUS ROG Strix B550-A Gaming

Chipset: AMD B550 Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. Grafická karta: Integrated Graphics Processor (na základě procesoru) Multi GPU: AMD 2-Way CrossFireX Technology Zvuková karta: ROG SupremeFX8-Channel High Definition Audio CODEC S1220A Síťová karta: Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard) Rozšiřující sloty: 3x PCIe 3.0 x1 1x PCIe 4.0 x16 (x16 mode) 1x PCIe 3.0 x16 (x16 mode) RAID řadič: 0, 1, 10 SATA: 6x SATA 6Gb/s M.2: 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) USB: zadní USB porty ( celkem 8 ) 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 4x USB 3.2 Gen 1 2x USB 2.0 přední USB porty ( celkem 6 ) 2x USB 3.2 Gen 1 port(s) 4x USB 2.0 port(s) Interní porty: 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1x Thunderbolt header(s) 1x CPU Fan connector(s) 1x CPU OPT Fan connector(s) 3x Chassis Fan connector(s) 1x AIO_PUMP connector 1x AAFP connector 2x Aura RGB Strip Header(s) 1x Addressable Gen 2 header(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 6x SATA 6Gb/s connector(s) 1x 24-pin EATX Power connector(s) 1x 8-pin ATX 12V Power connector(s) 1x 4-pin ATX 12V Power connector(s) 1x System panel(s) 1x Thermal sensor connector(s) 1x Clear CMOS jumper(s) Externí porty: 1x BIOS FlashBack™ Button(s) 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 1x Intel® I225-V 2.5Gb Ethernet 4x USB 3.2 Gen 1 1x DisplayPort 1x HDMI 2x USB 2.0 1x Optical S/PDIF out 5x Gold-plated audio jacks Obsah balení: 1 x M.2 SSD screw package(s) 1x M.2 Rubber Package(s) User´s manual 4x SATA 6Gb/s cable(s) 1x Supporting DVD 1x ROG Strix stickers 1x Cable ties pack(s) 1x Extension cable for Addressable LED 1x ROG Thank you card BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
