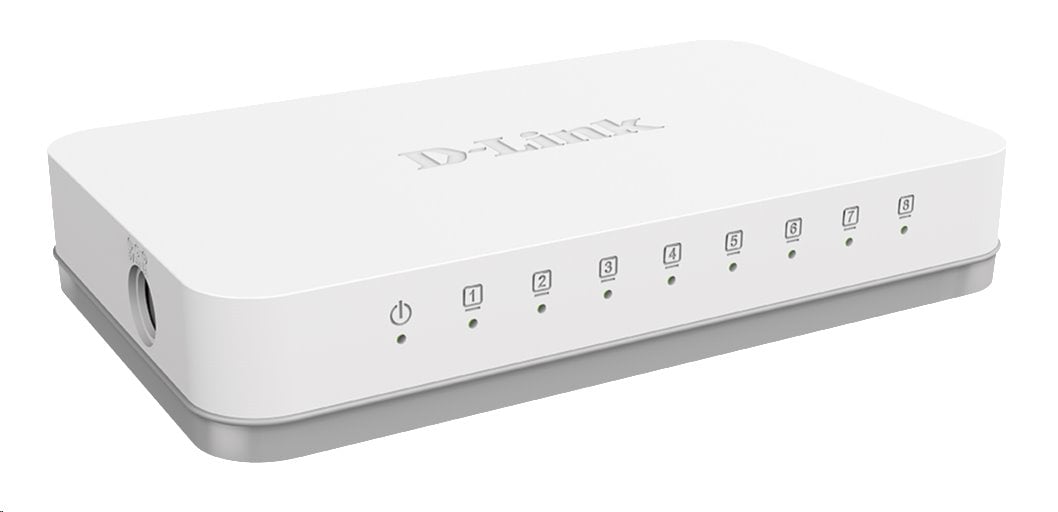

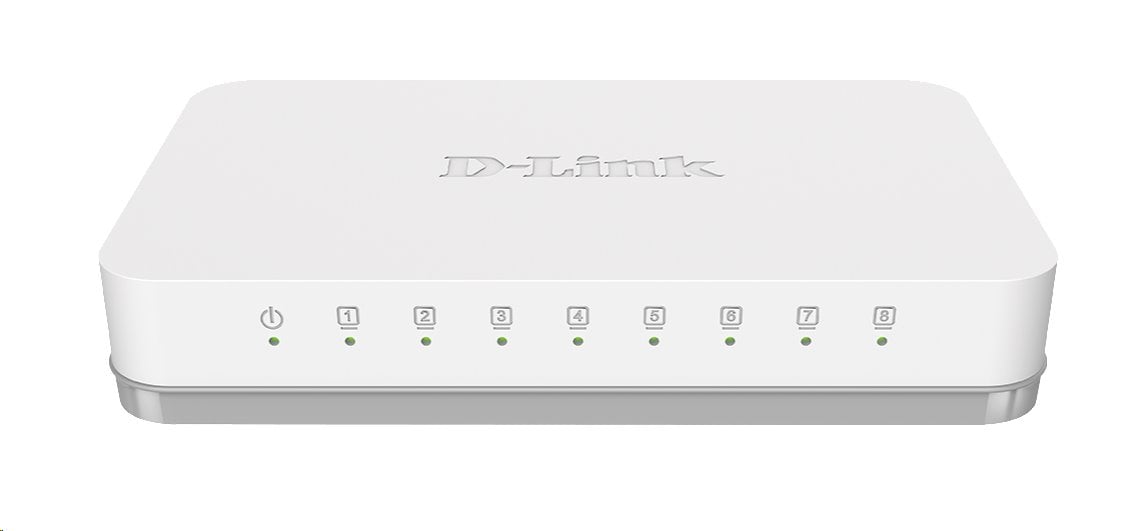

D-Link GO-SW-8G

D-Link GO-SW-8G 8-Port Gigabit Easy Desktop Switch OVERVIEW The 8-Port Gigabit Easy Desktop Switch (GO-SW-8G) offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. SPECIFICATIONS Switching Fabric • 16Gbps Standards • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x Flow Control • IEEE 802.3az Energy-Efficient Ethernet (EEE) Protocol • CSMA/CD Data Transfer Rates • Ethernet: • 10 Mbps (half duplex), 20 Mbps (full duplex) • Fast Ethernet: • 100 Mbps (half duplex), 200 Mbps (full duplex) • Gigabit Ethernet: • 2000 Mbps (full duplex) Topology • Star Network Cables • 10BASE-T: • UTP CAT 3, 4, 5/5e (100 m max.) • EIA/TIA-586 100-ohm STP (100 m max.) • 100BASE-TX, 1000BASE-T: • UTP CAT 5/5e (100 m max.) • EIA/TIA-568 100-ohm STP (100 m max.) Media Interface Exchange • Auto MDI/MDIX adjustment for all ports LED Indicators • Per port: Link/Activity/Speed • Per device: Power Transmission Method • Store-and-forward MAC Address Table • 8K MAC Address Learning • Automatic update Packet Filtering/Forwarding Rates • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port • Gigabit Ethernet: 1,488,000 pps per port RAM Buffer • 128KB per device Jumbo Frames • 9,216 Bytes DC Input • External 5 V/1 A Level "V" Power Adapter Power Consumption • DC input: 3.06 watts • AC input: 3.9 watts MTBF • 412,433 hours Operating Temperature • 0 to 40 °C Storage Temperature • -10 to 70 °C Operating Humidity • 10% to 90% RH non-condensing Storage Humidity • 5% to 90% RH non-condensing Dimensions • 128 x 68.5 x 25.4 mm Weight • 195 grams Certifications • FCC Class B • ICES-003 Class B • CE Class B • C-Tick Class B • VCCI Class B • cUL/UL • CCC • Anatel • LVD
