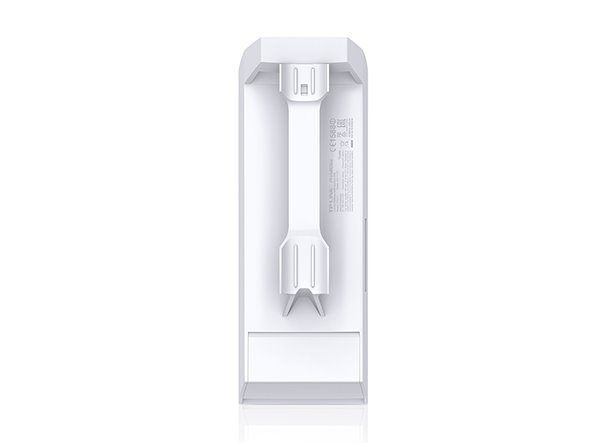

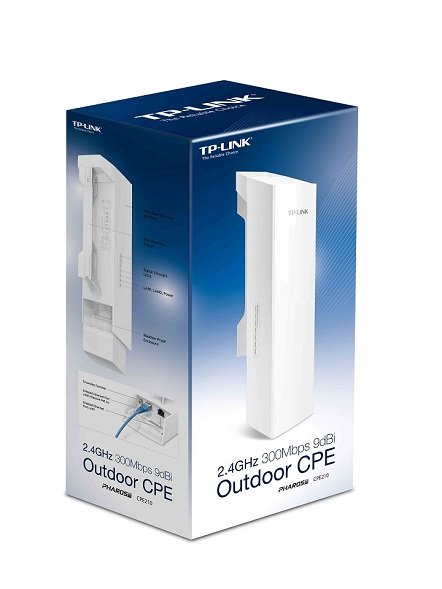

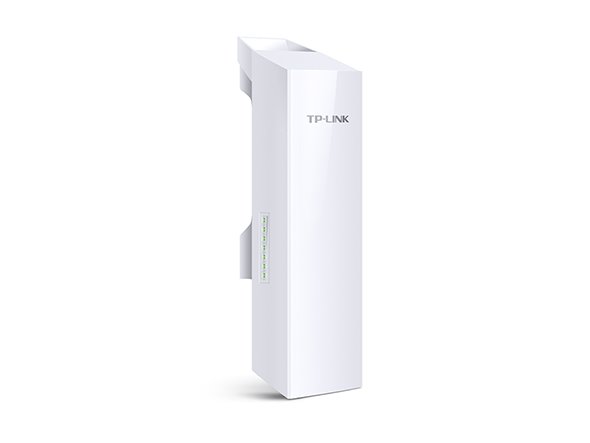

TP-LINK CPE210

TP-Link CPE210 Outdoor 2,4GHz 300Mbps OVERVIEW * Built-in 9dBi 2x2 dual-polarized directional MIMO antenna * Adjustable transmission power from 0 to 27dBm/500mw * System-level optimizations for more than 5km long range wireless transmission * TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications * Centralized Management System - Pharos Control * AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes * Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely SPECIFICATIONS HARDWARE FEATURES Processor * Qualcomm Atheros 560MHz CPU, MIPS 74Kc Memory * 64MB DDR2 RAM, 8MB Flash Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button Dimensions (W X D X H) * 224 x 79 x 60 mm Antenna Type * Built-in 9dBi 2x2 Dual-polarized Directional Antenna * Beam Width: 65° (H-Plane) / 35° (E-Plane) * Note: For more details, please refer to datasheet Protection * 15KV ESD Protection * 6000V Lightning Protection Power Consumption * 10.5 Watts Max * Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Power Supply * Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) * Voltage range: 16-27VDC Enclosure * Outdoor ASA stabilized plastic material * IPX5 waterproof Certification WIRELESS FEATURES Wireless Standards * IEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol * TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds * Up to 300Mbps (40MHz,Dynamic) * Up to 144.4Mbps (20MHz,Dynamic) * Up to 72.2Mbps (10MHz,Dynamic) * Up to 36.1Mbps (5MHz,Dynamic) Frequency * 2.4~2.483GHz * Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Reception Sensitivity * 802.11b: - 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm * 802.11g: - 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm * 802.11n: - MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, - MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, - MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, - MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, - MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm Transmission Power * 27dBm/500mw (Adjustable power by 1dBm) * Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. SOFTWARE FEATURES Wireless Configurations * Pharos MAXtream TDMA Technology * 802.11b/g/n Modes * Selectable Channel Width: 5/10/20/40MHz * Automatic Channel Selection * Transmission Power Control * Dynamic Frequency Selection (DFS) * WDS Enable/Disable * Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption * SSID Broadcast Enable/Disable * Multi-SSID with VLAN Tagging (AP mode only) * Distance/ACK Timeout Setting * Wireless MAC Address Filter * Wireless Advanced: * > Beacon Interval/RTS Threshold/Fragmentation * >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management * Discovery and Remote Management via Pharos Control application * HTTP/HTTPS Web-based management * System Log * SNMP Agent(v2c) * Ping Watch Dog * Dynamic DDNS * SSH Server System Tools * Wireless Signal Quality Indicators: * Signal Strength/Noise/Transmit CCQ/CPU/Memory * Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP * Spectrum Analyzer * Speed Test * Ping * Traceroute System-level Optimizations * Optimized IGMP Snooping/Proxy for multicast applications * Hardware watch dog OTHERS Certification * CE, FCC, RoHS, IPX5 Package Contents * Outdoor Wireless CPE * 24V 1A Passive PoE Adapter * Pole Mounting Straps * AC Power Cord * Installation Guide System Requirements * Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. * Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Environment * Operating Temperature: -30°C~70°C * Storage Temperature: -40°C~70°C * Operating Humidity: 10%~90% non-condensing * Storage Humidity: 5%~95% non-condensing POE ADAPTER FEATURES Button * Remote Reset Button Certifications * CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark Dimensions(W x D x H) * 110*57*33.5mm Efficiency * >80% Input * 100-240VAC, 50/60Hz Input Current * 0.8A Max @ 100VAC Input Voltage * 100VA~240VAC @ 50Hz~60Hz Interfaces * 1 AC Jack with Earth Ground * 1 10/100Mbps Shielded Ethernet Port (Power + Data) * 1 10/100Mbps Shielded Ethernet Port (Data) Output * 24VDC, 1.0A Max * +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Output Voltage * 24VDC(+4,5pins; -7,8pins) Power Status LEDs * 0~0.8A: Green * 0.8A~1.0A: Red
